YLB-086



1.Product introduction

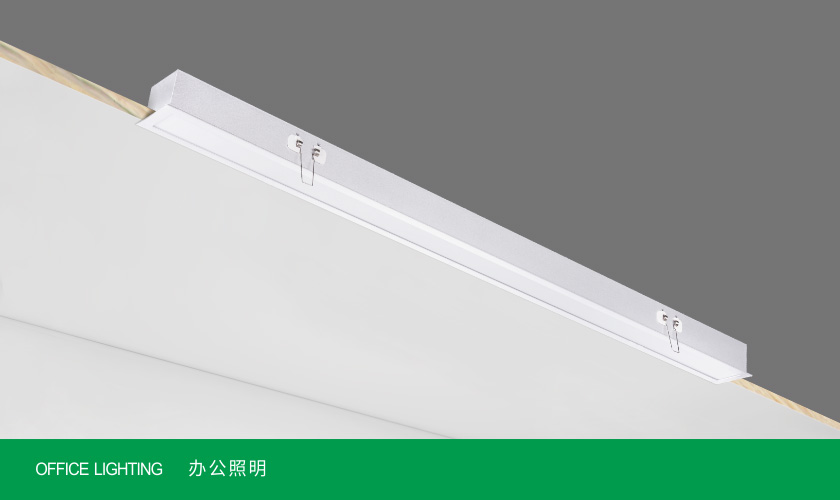

(1) This is the third generation of embedded linear lighting lamps of our company. It is made of high-quality aluminum profiles. The surface is carefully oxidized and sprayed, rust-proof and corrosion-resistant. It can be widely used in various ceilings, walls, floors and cabinets require embedded linear lighting applications.


(2) This product incorporates our years of experience in developing embedded linear lighting lamps. After three generations of improvements, it can handle various details of embedded lamps and contact surfaces. Because this generation of products adopts our new lamp frame structure, the heat dissipation function is excellent, ensuring the consistency of the color temperature while ensuring the continuity of the maximum brightness output of the lamp.


High quality spring snap

Our high-quality spring clips enable quick installation of the product and securely secure the lamp body to the ceiling.




2.Applications

Offices, office buildings, hospitals, hotels, and other public places that require embedded lighting.



3. Specification

TypeModelFeaturesProduct width
Office lightingYLB-086Embedded installation100mm
PowerLuminous  fluxColor temperatureCRI
36W2880Lm3000K/4000K/6500KRa≥80
VoltageSizeMaterialFinishing
220-240V1200x100x60mmAluminum&PCSpraying/oxidation
ColourStitching or not

Black/White/Silver/Custom



4.Installation and accessories




5.Reference Case

Area lighting / decorative lighting




6.Matters needing attention in the use of products

(1) Avoid 1 set of switch control too many lamps, it is recommended every 1A/1 lamp, for example: 16A air switch control 16 lamps.


(2) For the first time, it is strongly recommended that all switches be in the off state, then turn on the lamp switch test one by one, and the lamp will be turned off abnormally immediately to avoid large-area failure.


(3) Avoid storing or using lamps in a humid, acid, alkali or sulfur environment.


(4) Changing the lamp board or pulling out the connection wire of the lamp board will cause the lamp chip to be damaged when the power is on.
