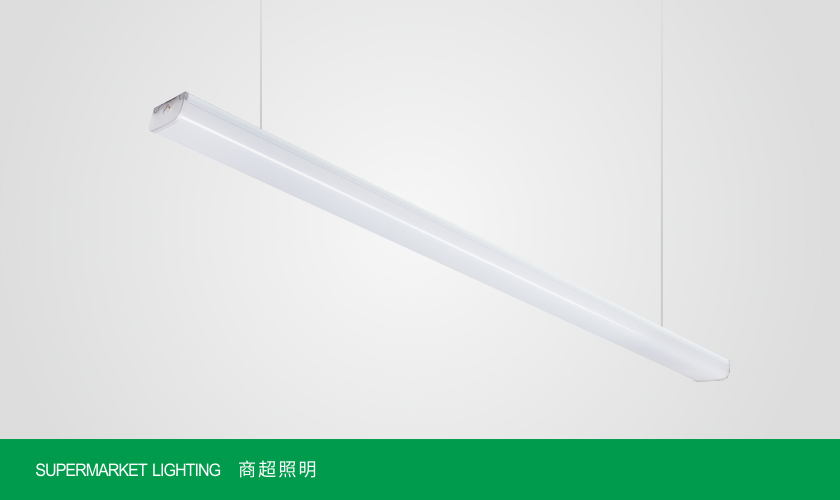

YLB-150



1.Product introduction

(1) This is our classic commercial super-light, which is made of high-quality aluminum and high-quality high-transparent flame-retardant PC anti-glare cover.


(2) This product is light in weight, easy to install, free of wiring, and can achieve unlimited splicing in appearance. It is a high-quality solution for linear lighting in traditional supermarkets.


Exempt from laying wires

It can be quickly spliced and installed through the product-specific connection accessories provided by our company, avoiding the splicing and wiring of multiple products.



Unlimited stitching

Through the installation of connecting accessories, infinite splicing can be achieved in appearance.



Tips: This product can achieve unlimited splicing in appearance, but it is recommended that each group of connection switch products be spliced no more than 10 products.


2.Applications

Supermarkets, shopping malls, exhibition halls and other places that require regional lighting.



3. Specification

TypeModelFeaturesProduct width
Supermarket LightingYLB-150Exempt from laying wires78mm
PowerLuminous  fluxColor temperatureCRI
36W2880Lm4000K/6500KRa≥80
VoltageSizeMaterialFinishing
220-240V1135x78x36mmAluminum&PCSpraying/oxidation
ColourStitching or not

White

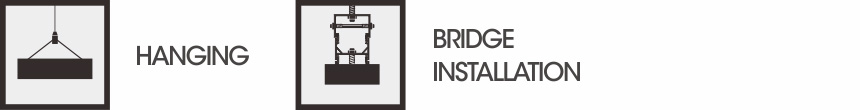

4.Installation and accessories




5.Reference Case

Hunan Supermarket - District Lighting



6.Matters needing attention in the use of products

(1) Avoid 1 set of switch control too many lamps, it is recommended every 1A/1 lamp, for example: 16A air switch control 16 lamps.


(2) For the first time, it is strongly recommended that all switches be in the off state, then turn on the lamp switch test one by one, and the lamp will be turned off abnormally immediately to avoid large-area failure.


(3) Avoid storing or using lamps in a humid, acid, alkali or sulfur environment.


(4) Changing the lamp board or pulling out the connection wire of the lamp board will cause the lamp chip to be damaged when the power is on.
